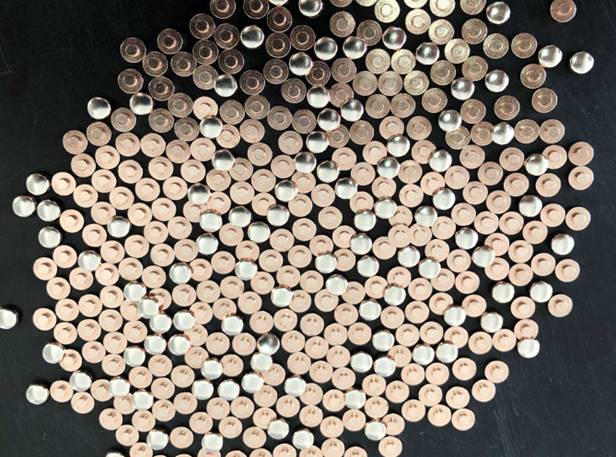

产品应用于各种继电器、接触器、温控器、定时器、电源开关等。
产品：AgNi/Cu、AgSnO2/Cu、AgSnO2InO3/Cu、AgCdO/Cu、AgZnO/Cu、Ag/Cu
等整体型、二复合型、三复合型铆钉。
Mainly used in all kinds of relay, contactor,thermostat,timer,Power switch.
and so on,Rivet products include integral type,double-composite type.
and triple- composite type: AgNi/Cu、AgSnO2/Cu、AgSnO2InO3/Cu、AgCdO/Cu、
AgZnO/Cu、Ag/Cu.etc.
应用场合 Application
图示 Standard shapes
  点
金相图片 产品结构
标准尺寸 Standard dimensions
|
钉脚直径
Shank Diameter
( d ) |
钉头直径
Head Diameter
( D ) |
钉脚长度
ShankLength
( L ) |
|
|
2.5 |
3 |
3.5 |
4 |
4.5 |
5 |
5.5 |
6 |
7 |
|
|
φ1.2 |
|
|
|
|
|
|
|
|
|
0.5-1.5 |
|
φ1.5 |
|
|
|
|
|
|
|
|
|
0.8-2.0 |
|
φ1.65 |
|
|
|
|
|
|
|
|
|
0.8-2.0 |
|
φ1.8 |
|
|
|
|
|
|
|
|
|
1.0-2.5 |
|
φ2.0 |
|
|
|
|
|
|
|
|
|
1.0-2.5 |
|
φ2.35 |
|
|
|
|
|
|
|
|
|
1.5-3.5 |
|
φ2.5 |
|
|
|
|
|
|
|
|
|
1.5-3.5 |
|
φ3.0 |
|
|
|
|
|
|
|
|
|
1.5-5.0 |
|
φ3.5 |
|
|
|
|
|
|
|
|
|
2.0-5.0 |
|
φ4.0 |
|
|
|
|
|
|
|
|
|
2.0-5.0 |
公差Tolerances
|
钉头直经
Head
Diameter |
钉头厚度
Head
Diameter |
钉脚长度
Shank
Length |
钉脚直径
Shank
Diameter |
复层厚度
Silver Layer
Thickness |
脱模角
Angle
θ（º） |
球面半径
Spherical
Radius |
|
±0.10 |
±0.05 |
+0.05
-0 |
-0.02
-0.10 |
S≤0.4 +0.04
-0.04 |
±2º |
±0.2R |
|
