产品应用于各种继电器、接触器、温控器、定时器、电源开关等。
产品:AgNi/Cu、AgSnO2/Cu、AgSnO2InO3/Cu、AgCdO/Cu、AgZnO/Cu、Ag/Cu
等整体型、二复合型、三复合型铆钉。
Mainly used in all kinds of relay, contactor,thermostat,timer,Power switch.
and so on,Rivet products include integral type,double-composite type.
and triple- composite type: AgNi/Cu、AgSnO2/Cu、AgSnO2InO3/Cu、AgCdO/Cu、
AgZnO/Cu、Ag/Cu.etc.
应用场合 Application

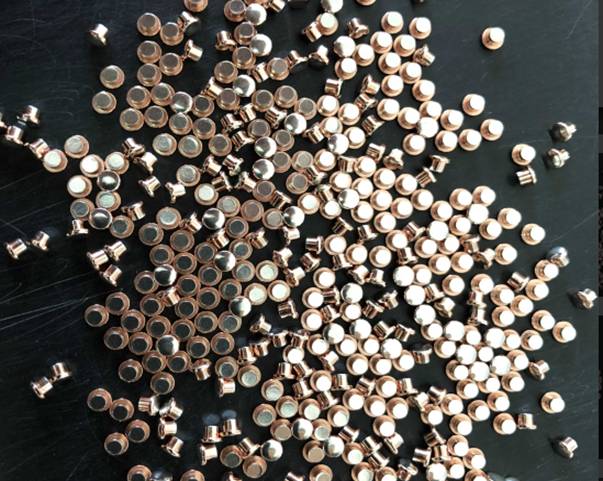

Trimetal rivets contact
图示 Standard shapes
金相图片 产品结构
产品规格 Material Properties
项目
Item |
钉头直经
Head Diameter
(D) |
钉头厚度
HeadDiameter
(T) |
钉头复层厚度
Silver Layer Thickness
(S) |
钉脚直径
Shank Diameter
(d) |
公差
Tolerance |
±0.10 |
±0.05 |
±0.03 |
-0.10 |
基本尺寸
Dimension |
2.3-3.0 |
0.8-1.2 |
0.3-0.6 |
1.5 |
3.2-4.0 |
0.8-1.2 |
0.4-0.7 |
2.0 |
4.0-5.0 |
0.9-1.3 |
2.5 |
5.0-6.0 |
1.0-1.5 |
3.0 |
项目
Item |
钉脚长度
Shank Length
(L) |
钉角复层厚度
Shank Silver Layer Thickness
(H) |
球面半径
Spherical Radius
(SR) |
脱模角
Angle
θ
(º) |
公差Tolerance |
+0.15 |
±0.03 |
±0.2R |
±2 |
基本尺寸
Dimension |
1.0-2.5 |
0.5-1.0 |
4-10 |
11° |
1.2-3.0 |
0.5-1.5 |
6-12 |
1.5-3.5 |
0.8-2.0 |
8-15 |
2.0-4.0 |
1.0-2.5 |
10-20 |
主要产品 Material Product
Ag/Cu/Ag |
AgNi/Cu/AgNi |
AgCdO/Cu/AgCdO |
AgZnO/Cu/AgZnO |
AgSnO2/Cu/AgSnO2 |
|
