异型复合电接触材料是为电气连接而用的非常精确的贵金属线材，这种材料主要是用于转换及引导电流。其容量从低电流到200A电流范围内变化。

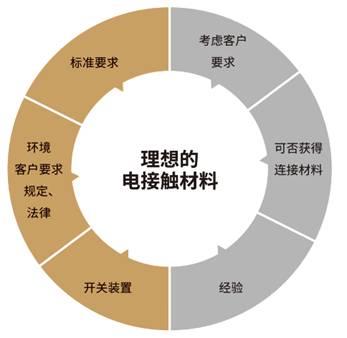

对于异型复合电接触材料的选择，是根据材料的属性、设计参数、开关负载和部件所需的开关操作的数量总计。

根据其应用目的材料和截面几何形状都是按照客户要求量身定做而成。

我们主要的优势是方案咨询以及设计和截面几何形状尺寸，选择适合的材料和具体节约贵金属等方面的经验。

容量范围

MV -- 380V

μA--200A

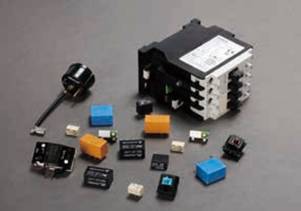

应用领域

汽车技术：继电器、微型开关

电信行业：通讯继电器、开关

低压电器：开关、断路器、通用继电器

印刷线路板继电器、微型开关、

计算机键盘、温控器、热保护器等。

The heterogeneous composite electrical contact material is a very accurate precious metal wire used for electrical connection. This material is mainly used for converting and guiding current. Its capacity varies from low current to 200A current range.

The selection of heterogeneous composite electric contact materials is based on the total number of switch operations required by material properties, design parameters, switching load and components.

According to its application purpose material and section geometry are tailored according to customer requirements.

Our main advantages are program consultation and design and sectional geometry dimensions, selection of suitable materials and specific experience in saving precious metals.

Capacity range

The MV - 380 - v

Mu A, 200 A

Application field

Automotive technology: relays, miniature switches

Telecom industry: communication relay, switch

Low voltage electrical appliance: switch, circuit breaker, general relay

Printed circuit board relay, micro switch,

Computer keyboard, thermostat, thermal protector, etc.

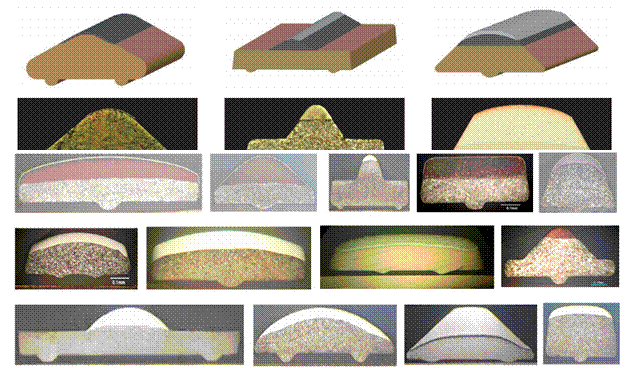

横截面形状 Cross sectional shape

焊接肋条的截面形状及数量取决于材料的结合及焊接强度。

在客户与中创电子之间协商同意下，连接截面材料可以有焊接肋条或没有焊接肋条形态下进行生产。焊接肋条的宽度一般在0.05-1.00mm之间，高度在0.03-0.20mm之间。

The cross section shape and quantity of welding rib depend on the combination of material and welding strength.

With the agreement of customer and zhongchuang electronics, the joint section material can be produced in the form of welding rib or without welding rib. The width of the welding rib is usually between 0.05 and 1.00mm and the height is between 0.03 and 0.20mm.

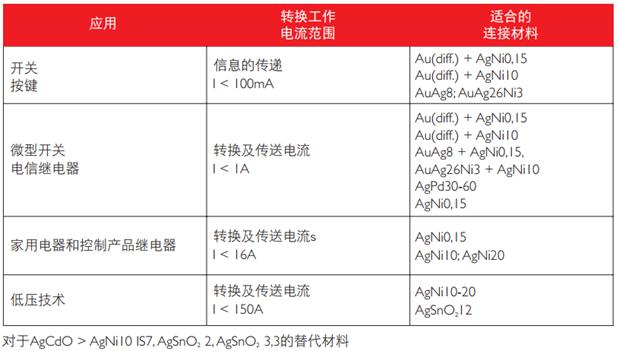

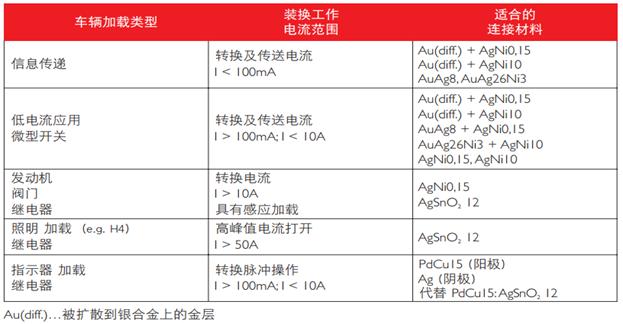

选材办法 Select material to

n 0.0 The cross section shape and quantity of welding rib depend

 异型复合带材

    Allotype bimetal Strips

基体连接材料 The matrix connects the material

铜Copper：                        TU1、TU2、T2

铜合金Copper alloy：              CuNi20、CuNi30F1、CuNi44

                                     CuNi9Sn2、Bzn18-18、Bzn15-20

                                     Qsn6.5-0.1、Qsn4.5-0.3、Qsn6.5-0.4

  镍Nickel：                         Ni

其它特殊合金Other special alloys：Fe

可供货范围 Availability range

我们可以为客户提供的供货方式为圆点、片材、带材及焊接组件。

We can supply customers with polka dots, sheet, strip and welding components.
